Anhydrous fluid serum as vehicle for drug delivery formulations: sterility test results for bacterial and fungal growth

Received on: 20/03/2019
Approved on: 13/06/2019
This study was performed at the Clínica Célia Kalil, Porto Alegre (RS), Brazil.
Financial support: None
Conflict of interests: None

Abstract

INTRODUCTION: Topical delivery of drugs is essential in Dermatology Due to the difficulty of permeation of the stratum corneum, drug delivery techniques have been highlighted. The use of non-specific formulations for this purpose makes raises the concern of possible adverse events and the microbiological safety of these formulations.
OBJECTIVE: To assess bacterial and fungal growth in anhydrous fluid serum through simple sterility test. Materials and METHODS: The simple sterility test was performed on an anhydrous serum containing lipophilic and hydrophilic active substances. This test was performed three months after the manufacture of the product.
RESULTS: The formulation studied was approved in the simple sterility test conducted three months after the manufacture of the product, even without the use of preservatives in the formulation.
DISCUSSION: The assessed formulation was approved in the sterility test possibly due to the fact that the serum vehicle has mineral and anhydrous origin, characteristics that do not favor the proliferation of microorganisms.
CONCLUSIONS: Although only the vehicle counting specific assets has been tested, the results of this study are promising and demonstrate the need for future studies broadly encompassing this subject.

Keywords: Drug Administration Routes; Brazilian Pharmacopeia; Skin Cream

INTRODUCTION

Topical delivery of drugs in Dermatology is key to successful effectiveness. Medicines and active principles applied to the skin need to penetrate and reach a target structure. The epidermis' barrier function is maintained by the stratum corneum's double lipid layer, which is the main limiting factor for topical delivery of medications. ¹ Drug penetration through untouched stratum corneum occurs by diffusion and via cutaneous appendages to a lesser extent. In addition, only lipophilic molecules smaller than 500da are able penetrate it, and only 1% to 5% of the substances applied to the skin are effectively absorbed and become bioavailable. ² The drug delivery technique corresponds to using chemical, mechanical or physical methods aimed at optimizing the penetration of drugs. ² The use of non-specific formulations for drug delivery can lead to undesirable effects, such as irritative and allergic dermatitis, foreign body granulomas, and cutaneous infection. ³

Many cosmetic formulations available on the market contain chemical preservatives and additives in their formulation, making them unsuitable for use in drug delivery. Moreover, contamination of the formulations by microorganisms may occur, making them unsuitable for this purpose. ⁴

MATERIALS AND METHODS

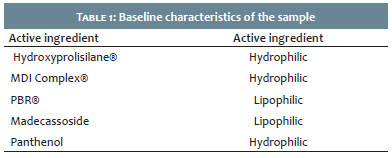

The growing demand for adequate formulations for drug delivery that can be applied immediately after medical dermatological procedures gave motivation the authors of the present paper to perform a sterility test on the anhydrous serum vehicle that is claimed to have properties that promote the safe delivery of the medication containing the following lipophilic and hydrophilic active principles: 6% hydroxyprolisilane^® (increases synthesis of collagen and elastin, improves healing), 4% MDI Complex^® (anti-inflammatory, reduces erythema and edema), 1% PBR^® (re-epithelizing properties), 0.1% madecassoside (inhibits a series of inflammatory cytokines, has regenerative action and stimulates collagen I), and 4% panthenol (promotes healing and regeneration) Table 1-Farmatec^® Pharmacy, Porto Alegre (RS), Brazil).

The formulation was tested for its ability to remain sterile – including after the vial had been opened – simulating what occurs when the product is applied by a physician at a practice and / or is used by the patient at home.

The simple sterility test was performed as described in the Brazilian Pharmacopoeia - 5^th Edition (Farmacopeia Brasileira - 5ª edição, item 5.5.3.2 for sterile products) (Pharmacontrol - quality control laboratory, Porto Alegre RS, Brazil). The same test is applied for sterile injectable and topical formulations, having been performed three months after the sample was manufactured. In addition, the vial was opened and used during a three-month period with a view to emulate conditions of use at the physician's practice. The test employs two culture mediums, which are previously tested to ensure their capacity to promote bacterial growth by directly inoculating two units of the manufactured 4.5 ml batch (corresponding to 5% of the total batch): (i) liquid medium of 1-thioglycollate for aerobic and anaerobic bacteria and (ii) fluid soybean-casein medium for aerobic bacteria, yeasts and fungi. The anhydrous serum – the substance studied in the present paper – remained incubated for a period of 14 days. After the first tested vial passes the sterility test, the batch's sterility is confirmed by incubating all manufactured vials in the culture mediums for 14 days, under the conditions described above. No microbial growth should occur. No active microbial growth should take place, and its occurrence corresponds to failure in passing the sterility test.

RESULTS

The sterility test confirmed the absence of microbiological contamination for bacteria, fungi and yeasts (Figure 1). Therefore, the studied formulation was approved in the sterility test, even without the presence of preservatives and three months after having been manufactured.

DISCUSSION

Choosing the right vehicle for drug delivery is crucial: creams, lotions, gels, and some serums are not adequate due to their high viscosity, which decreases transepidermal / transdermal delivery of active ingredients. ⁴ The ideal formulation for drug delivery should be devoid of and repel water, as well as being mineral in order to provide a barrier against transepidermal water loss (TEWL). In addition, it should favor healing and dermal permeation of hydrophilic and lipophilic substances. Furthermore, the formulation's pH should resemble that of the skin, give that a higher pH may lead to skin irritation and rupture of the cutaneous "acid mantle". ⁵ The anhydrous vehicle does not cause burning sensation and does not require the addition of preservatives and chemicals, theoretically offering microbiological safety related to bacterial and fungal proliferation. Moreover, the anhydrous serum promotes occlusion. ⁶ It is worth to note that, regardless of the drug delivery technique chosen to optimize drug permeation, occlusion is beneficial to increase the efficacy of the method, since it delays the recovery of the cutaneous barrier, leaving the stratum corneum permeable for longer. ⁷

The authors believe that the studied formulation's successful outcome in the sterility test is linked to the fact that the vehicle is of mineral and anhydrous origin, which are features that do not allow the proliferation of microorganisms, which in turn favor the hypothesis that the formulation is safe for drug delivery, even if used immediately after ablative procedures.

CONCLUSION

Choosing the right vehicle is crucial regardless of the method being used to promote drug delivery. For this reason and aiming at ensuring procedural safety, studies on specific vehicles for drug delivery are of great interest. Although only the anhydrous serum vehicle containing hydroxyprolisilane^®, MDI Complex^®, PBR^®, madecassoside and panthenol has been tested, the outcomes observed in the present report are promising and can serve as a foundation for more comprehensive studies on the subject in the future. l

ACKNOWLEDGEMENTS

The authors would like to thank Farmatec Farmácia de Manipulação, which manufactured and supplied the formulation free of charge for the present study.

DECLARATION OF PARTICIPATION:

Clarissa Prieto Herman Reinehr | ORCID 0000-0003-1811-4519

Approval of the final version of the manuscript; study design and planning; manuscript preparation and Drafting; data collection, analysis and interpretation; research guidance; intellectual participation in propaedeutic and / or therapeutic management of the cases studied; critical review of the literature.

Célia Luiza Petersen Vitello Kalil | ORCID 0000-0002-1294-547x

Approval of the final version of the manuscript; data collection, analysis and interpretation; research guidance; intellectual participation in propaedeutic and / or therapeutic treatment of cases studied; critical review of the literature; critical review of the manuscript.

Laura de Mattos Milman | ORCID 0000-0002-3249-0396

Approval of the final version of the manuscript; study design and planning; manuscript preparation and Drafting; data collection, analysis and interpretation; research guidance; critical review of the literature.

Christine Chaves | ORCID 0000-0001-8861-6499

Approval of the final version of the manuscript; study design and planning; manuscript preparation and Drafting; data collection, analysis and interpretation; research guidance; intellectual participation in propaedeutic and / or therapeutic management of the cases studied; critical review of the literature.

REFERENCES

1. Purdon CH, Azzi CG, Zhang J, Smith EW, Maibach HI. Penetration enhancement of transdermal delivery--current permutations and limitations. Crit Rev Ther Drug Carrier Syst. 2004;21(2):97-132.

2. Leite-Silva VR, de Almeida MM, Fradin A, Grice JE, Roberts MS. Delivery of drugs applied topically to the skin. Expert Rev Dermatol. 2012; 7(4):383-97.

3. Soltani-Arabshahi R, Wong JW, Duffy KL, Powell DL. Facial Allergic Granulomatous Reaction and Systemic Hypersensitivity Associated With Microneedle Therapy for Skin Rejuvenation. JAMA Dermatol. 2014;150(1):68-72.

4. Haedersdal M, Erlendsson AM, Paasch U, Anderson RR. Translational medicine in the field of ablative fractional laser (AFXL)-assisted drug delivery: A critical review from basics to current clinical status. J Am Acad Dermatol. 2016; 74(5):981-1004.

5. Brogden NK, Milewski M, Ghosh P, Hardi L, Crofford LJ, Stinchcomb AL. Diclofenac delays micropore closure following microneedle treatment in human subjects. J Control Release. 2012; 163(2):220-9.

6. Lin CH, Aljuffali IA, Fang JY. Lasers as an approach for promoting drug delivery via skin. Expert Opin Drug Deliv. 2014;11(4):599-614.

7. Kelchen MN, Siefers KJ, Converse CC, Farley MJ, Holdren GO, Brogden NK. Micropore closure kinetics are delayed following microneedle insertion in elderly subjects. J Controlled Release. 2016; 225:294-300.
