Percutaneous induction of collagen with needles (IPCA^®) associated with Pulsed radiofrequency with multineedles (RFPM^®) in the management of depressed acne scars: treatment protocol

Received on: 04/04/2017
Approved on: 20/07/2017
Financial support: None
Conflict of interests: None

Abstract

Introduction: Depressed acne scars always arise as a therapeutic challenge. Fractional lasers, surgical approaches and chemical peels have attempted to offer acceptable aesthetic results, however it is still difficult to determine the ideal treatment. Objective: To evaluate the efficacy of Percutaneous Collagen Induction with needles (IPCA^®) associated with Pulsed Radiofrequency with Multineedles (RFPM^®) in depressed acne scars. Methods: Retrospective study of the safety and effectiveness of the technique through the evaluation of results based on a satisfaction questionnaire answered by the patients and the clinical and photographic assessment carried out by a dermatologist. Results: Thirteen patients (aged between 21 and 37 years) who had undergone the combination treatment were evaluated. All (100%) reported satisfaction with the outcomes, while in the comparative evaluation of photographs yielded an improvement rate of 50% in 2 patients and of 70% in 6 patients. Conclusion: This new therapeutic proposal arises as an alternative in the treatment of depressed acne scars.

Keywords: SCARS; PULSED RADIOFREQUENCY TREATMENT; COLLAGEN

INTRODUCTION

Depressed acne scars always present as a therapeutic challenge. We commonly see significant changes in color, texture and relief due to an inflammatory process that causes destruction of the epidermis, dermis and, sometimes, with important consumption of the subcutaneous tissue.¹ Surgical techniques and technologies have been used in the management of these difficult-to-treat lesions, however, due to the different presentations, we do not have a gold-standard therapeutic option.¹ Percutaneous collagen induction (PCI) with needles proposes the substitution of the cicatricial collagen for a new collagen at the same time that it preserves the epidermis of the area treated. The scars are broken down by a roller with 192 microneedles on average that, after many passes on the area of interest, results in the formation of micro channels, bleeding and an inflammatory cascade that induces the remodeling of the scar tissue.^2-4 With the intention to optimize the results obtained with PCI, the author has been using the combination of other techniques before the use of the needle roller. Based on the findings from treatment of eyelid laxity and in old stretch marks, the author initiated an investigation looking for the applicability of fractional radiofrequency micro-needling (FRM) in depressed acne scars.^5,6 In FRM, the random fractional, high frequency energy applied on the skin results in dermal regeneration at the level of the interface papillary-reticular, through the stimulation of fibroblasts with subsequent synthesis of collagen and elastic fibers, as well as epidermal regeneration generated by keratinocyte migration. This study is the result of the observation of the association of PCI and FRM. Here, it is proposed an innovative approach for the treatment of depressed acne scars, based on the sub-ablative energy, with electrodes with multiple needles connected to a radioelectrosurgery device. This technique, performed accurately and isolated, does not compromise the tissue surrounding the vaporized micropoints and causes a significant impact on the tissue, enabling the stimulus for a new collagen (Figure 1). Electrodes known as Lima 2, Lima 4 e Lima 8 are needed for the execution of FRM, named after the author, made up of two, four or eight tungsten needles, respectively, with a diameter of 100 thousandth of millimeters, identical weight and length and oriented in a parallel fashion, with the objective of reaching the same depth. With a length of 2.5mm, these needles pass through the epidermis and act in the dermis, stimulating the contraction and the renovation of the collagen.



METHODS

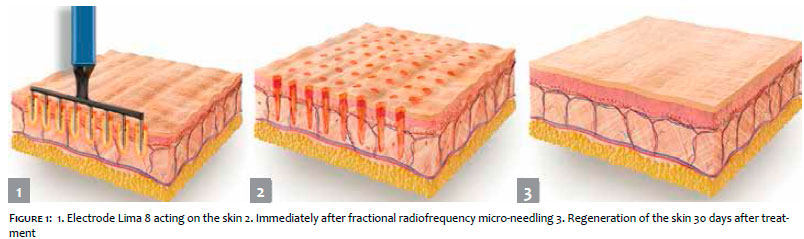

In this retrospective study of the safety and efficacy of the combined techniques, the records of 13 patients with depressed acne scars on the face, treated at Santa Casa de Misericórdia do Recife with the combination of PCI and FRM, performed in the outpatient setting by the same physician, using the same protocol, between January and December 2016 were. Photographic records were done with the same digital camera in identical environmental conditions, immediately before and two months after a single treatment. The study was conducted according to the ethical criteria of the Helsinki declaration. After disinfection with chlorhexidine 1%, the area was infiltrated with lidocaine 2% without vasoconstrictor 1:2 saline 0.9% solution, respecting the maximum safe dose according to the weight of each patient. Then protocol was initiated with FRM. For its execution, the device FRAXX^® (Loktal Medical Electronics, São Paulo, Brazil Anvisa n. 10362610008) was used in the single pulse mode. The patients in this group were treated with the setting CUT, with potency 30 and Active 30’, using the electrode Lima 8 following the trajectory of the scars, without overlapping. Subsequently and on the same surgical step, PCI was performed using a 2.5mm roller (Dr. Roller^®-Moohan Enterprise CO., Gyeonggi-do,South Korea,Anvisa n.80669600001) looking for a uniform purpura pattern.



RESULTS

Seven female patients and six male patients, aged 21-37 years, were included in this investigation. The phototypes were III to V, according to the classification of Fitzpatrick. All patients were satisfied with the results, shown in the questionnaires as good and very good, according to the norms proposed. In the clinical and comparative evaluation of the photographs from before the treatment and two months after, the improvement rates were: 50% = good in 2 patients and 70% = very good in 6 patients (Figure 2). Pain during treatment was considered bearable, and tissue regeneration was seen between 5 to 7 days, with return to normal activities in the same time.

There was no infection, dyspigmentation or unsightly scars observed in this group after the treatment. Edema and erythema were as expected for a surgical intervention, with spontaneous regression between 7 to 10 days.



DISCUSSION

Even with the wide range of therapeutic options currently available for the treatment of scars, we still see mild or dissatisfactory improvement in many patients. Micro-needling has been offering promising results for the correction of acne scars, stretch marks, laxity and wrinkles.^7,8 In this investigation, we proposed the combination of two techniques that use microneedles in an innovative intervention, following a protocol by the author for the correction of difficult-to-treat scars. The results obtained allow us to conclude that:

FRM is a promising therapy for the treatment of depressed acne scars, when associated to PCI.

The results obtained are reproducible by qualified professionals using the methodology described in this article.

The quick return to normal activities and the few side effects seen in the group assessed encourage the author to recommend the inclusion of this new proposition in the wide therapeutic arsenal already available.

The procedure demands training and is essentially operator-dependent. The operator needs to be adequately trained and have all the basic knowledge to achieve the best results.

We suggest the evaluation of the protocol here established in other groups to confirm the results and conclusions here presented.



DECLARATION OF PARTICIPATION:

Emerson Vasconcelos de Andrade Lima:

Study conception and planning. Preparation and wording of the manuscript. Data collection, analysis and interpretation.



REFERENCES

1. Velasco MVR, Ribeiro ME, Bedin V, Okubo FR, Steine D. (2004). Rejuvenescimento da pele por peeling químico: enfoque no peeling de fenol Facial skin rejuvenation by chemical peeling: focus on phenol peeling. An Bras Dermatol. 2004; 79(1), 91-99.

2. Souza CB, Guerra JG, Barbosa MA, Porto CC. Rejuvenescimento facial por intervenção miofuncional estética: revisão integrativa. Med Cutan Iber Lat Am. 2013; 41(4):165-71.

3. Giacomini PO, Rein R. A mechanistic model for the aging of human skin. Micron 2004; (35): 179-84.

4. Fisher GJ, Varani J, Voorhees JJ. Looking older: fibroblast collapse andtherapeutic implications. Arch Dermatol. 2008; 144(5):666-72.

5. Quan T, Fisher GJ. Role of age-associated alterations of the dermal extracellular matrix microenvironment in human skin aging: A Mini-Review. Gerontology. 2015;61(5):427-34.

6. Yaar M, Gilchrest B. Aging of skin. In: Fitzpatrick's dermatology in general medicine. 7th ed. New York : McGraw-Hill Medical; 2008. p. 963-73.

7. Jansma J, Schepers RH, Schouten HJ, Vissink A. Blepharoplasty in aesthetic facial surgery. Ned Tijdschr Tandheelkd 2014; 121:395–400.

8. Shehzad A, Mian A, Shah S. Skin aging. Journal of Pakistan Association of Dermatology. 2016; 21(2):77-79.

9. Fitzpatrick RE, Rostan EF. Reversal of photodamage with topical growth factors: a pilot study. J. Cosmet. Laser Ther. 2003; 5(1), 25–34.

10. Zouboulis CC, Makrantonaki E. Clinical aspects and molecular diagnostics of skin aging. Clin. Dermatol. 2011; 29(1): 3–14.

11. Motta MM. Avaliação histológica e morfológica da pele de ratos adultos submetidos à ação de um laser de CO2 fracionado aplicado com três diferentes parâmetros. 2016. (s.n.).

12. Jindal K, Sarcia M, Codner MA. Functional considerations in aesthetic eyelid surgery. Plast Reconstr Surg. 2014; 134(6): 1154–70.

13. Zoumalan CI, Roostaeian J. Simplifying blepharoplasty. Plast Reconstr Surg. 2016; 137(1):196–213.

14. Goldberg DJ. Lasers for facial rejuvenation. Am j clin dermatol. 2003; 4(4); 225-34.

15. Campos V, Mattos R A D, Fillippo A, Torezan LA. Laser no rejuvenescimento facial. Surg Cosmet Dermatol. 2009; 1(1): 29-36.

16. Zachary CB. Facial Rejuvenation: 40th Anniversary Review. Semin Cutan Med Surg. 2016; 35(6 Suppl): S122-24.

17. ASDS – American Society for Dermatologic Surgery. Non-ablative Laser Rejuvenation. [Internet]. 2016. Acesso em 12 de julho de 2017. Disponível em: https://www.asds.net/_PublicResources.aspx?id=8215&terms= rejuvenation%20and%20laser

18. Fitzgerald R, Vleggaar D. Facial volume restoration of the aging face with poly-l-lactic acid. Dermatol Ther. 2011; 24(1):2-27.

19. Varani J, Dame MK, Rittie L, Fligiel SE, Kang S, Fisher GJ, Voorhees JJ. Decreased collagen production in chronologically aged skin: roles of age-dependent alteration in fibroblast function and defective mechanical stimulation. Am J Pathol. 2006; 168(6):1861-8.

20. Britt C J, Marcus B. Energy-Based Facial Rejuvenation: Advances in Diagnosis and Treatment. JAMA facial plast surg. 2017;19(1); 64-71.

21. Trelles MA, Allones I, Luna R. Facial rejuvenation with a non-ablative 1320nm Nd:YAG laser. Dermatol Surg.2001;27(2):111-16.

22. Fournier N, Dahan S, Barneon G, Diridollou S, Lagarde J M, Gall Y, et al. Nonablative remodeling: clinical, histologic, ultrasound imaging, and profilometric evaluation of a 1540 nm Er: glass laser. Dermatol Surg. 2001; 27(9):799- 806.

23. Ross E, Victor M, Joseph R. Anderson R. Why does carbon dioxide resurfacing work?: a review. Arch Dermatol. 1999; 135(4): 444-54.

24. Alster TS, Lupton JR. An overview of cutaneous laser resurfacing. Clin Plast Surg. 2001; 28(1): 2837- 52.

25. Walgrave S, Zelickson B, Childs J, Altshuler G, Erofeev A, Yaroslavsky I, et al. Pilot investigation of the correlation between histological and clinical effects of infrared. Dermatol Surg. 2008; 34(11):1443-53



Study conducted at the Department of Dermatology, Santa Casa de Misericórdia de Recife – Recife (PE), Brasil.
